Артикул:
10122 Цена:
| 25 240 ₽ |

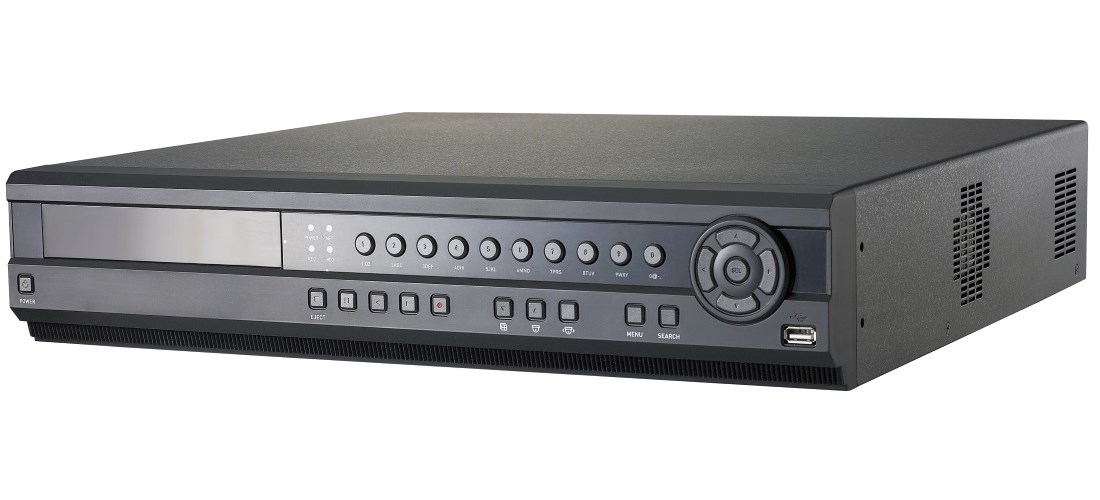

Сетевой 16-канальный видеорегистратор CNB-MNVR16
Сетевой 16-канальный видеорегистратор CNB-MNVR16 - разрешение 720P до 8 каналов, D1 до 16 каналов, видеовыход - VGA, HDMI; регистрация аудио - 16 каналов, сжатие H.264 / JPEG / MPEG4, разрешение (общая скорость записи): 1080P (100 кадров в секунду), 720P (200 кадров в секунду), D1 (400 кадров в секунду), скорость вывода - реальное время.
HDD (SATA) - 2 шт., емкость до 3 Тбайт, ИК-пульт управления, USB 2.0, порт RS-485, размеры 350.0 х 250.0 х 72.0мм
| Сетевой видеорегистратор CNB-MNVR16 | |
| Input | Max. 16 (Up to 8CH@ 720P/ 16CH@ D1) |
| Output | 1 HDMI, 1 VGA |
| Audio | |
| Input(via Network) | 16 |
| Output | 1 |
| Recording | |
| Compression | H.264 / JPEG / MPEG4 |
| Resolution | 1080P(1920x1080) / 720P(1280x720) / D1(704x480) |
| Recording Mode | Normal / Event(Alarm, Motion), Schedule |
| Recording Frame | 120fps@1080p/240fps@720p /480fps@D1 |
| Display | |
| Multi-screen Display | 1/4/9/16 |
| Output | 1080P / 1080i / 1024x768 to 1920x1080 |
| Multi Language | |
| Multi Language | English, Korean, Chinese, French, German. Italian, Netherlands, Russian, Polish, Spanish, Hungarian, Slovak, Portuguese, Japanese,Turkish, Danish, Czech, Arabic |
| Playback | |
| Display Mode | 1/4/9/16 |
| Playback Mode | Date & Time, Calendar, Event(Alarm, Motion, Audio), Bookmark |
| Search Mode | Normal, REW(*1,*2,*4,*8,*16) & FF(*1,*2,*4,*8,*16), Frame to Frame, Pause/Slow REW/FF(1/2, 1/4, 1/8, 1/16, 1/32) |
| Still Image | JPEG, BMP Compression or Exclusive Format & USB I/F Device(Momory Stick) |
| Network | |
| Interface | Ethernet*2(for IP Camera & Client PC) |
| Protocol | 2 TTL (Terminal Block NO/NC Programmable) |
| Serial Comm. | RS-485*2(PTZ & Keyboard control) |
| PC Client | Windows 2000 / XP(PC Client System) / Windows Vista |
| Browser | Internet Explorer 5.0 or Later |
| Event | E-mail notification |
| Viewing/Access | Remote Client, CMS, Mobile View / Up to 25 Users |
| Archive | |
| Interface | USB 2.0 x 2 |
| Archive Device | Network, Memory Stick, External Storage |
| Control | |
| Event Log | Up to 5000 Logs(Video & Power Loss, Power & Record On/Off, Menu set) |
| Controller | IR Remote Control/Mouse |
| Pan/Tilt Camera | Control From RS485 Interface/ Via Network |
| Sensor In & Alarm Out | 4/1 |
| Storage | |
| Internal HDD | Max. 2 SATA & up to 6TB |
| Other | |
| Operating Temperature | 5℃ ~ 40℃ (41F ~ 104F) |
| Operating Humidity | 0% ~ 80% / Non-Condensing |
| Power | DC12V, 3.5A |
| Dimensions (WxHxD) | 350 x 72 x 250 (mm) |
| Weight | Approx. 3Kg (Without HDD) |
